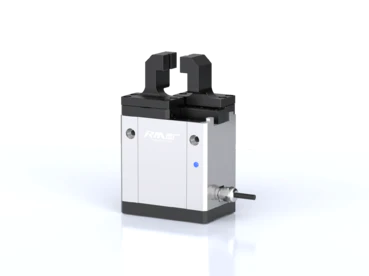

RM-MFGB——Multi-Function Long Stroke Gripper
Large Stroke
Large Gripping Force
IP55 Level
Waterproof Connector
Stable & Reliable
Speedy Gripping
Large Stroke
Large Gripping Force
IP55 Level
Waterproof Connector
Stable & Reliable
Speedy Gripping
| Item | Parameters | ||
|---|---|---|---|

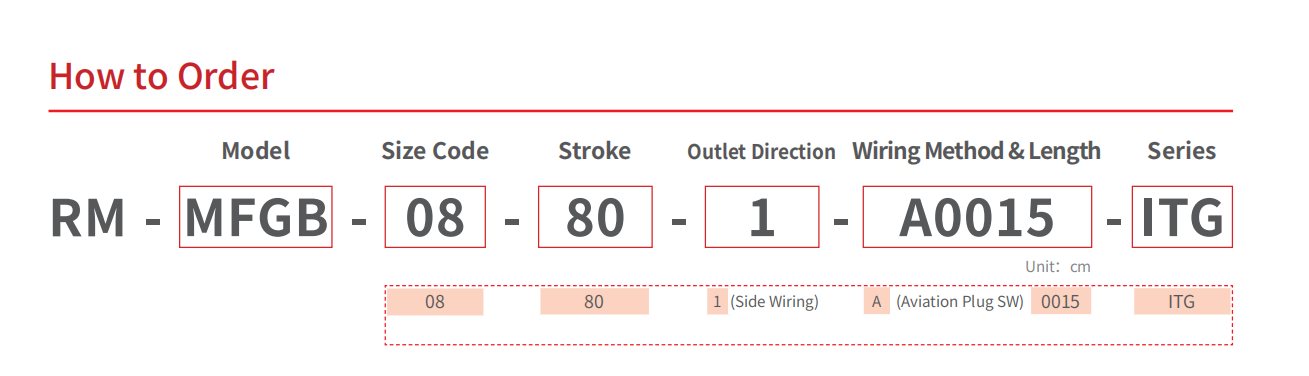

| Model | Model | RM-MFGB-08-80-1-ITG | |
| Size Code | 08 | ||
| Weight (kg) | 1 | ||
| Dimensions (mm) | 95*62*106 | ||
| Performance | Stroke (mm) | 80 | |
| Max.gripping Force¹ (N) | 150 | ||
| Max. load Mass (kg) | 3 | ||
| Repeat Positioning Accuracy (mm) | ±0.03 | ||
| Max.opening/closing Time (s) | 0.7/0.7 | ||

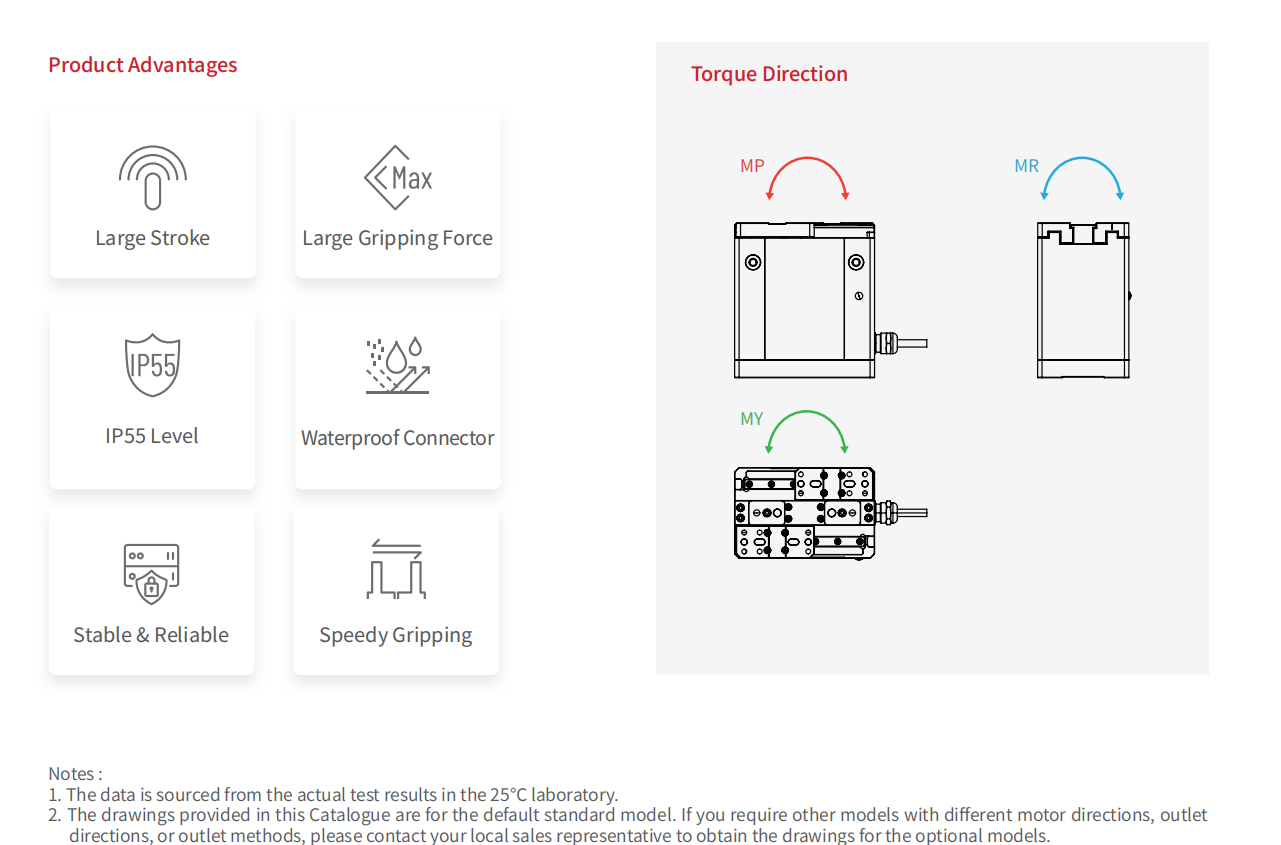

| Permissible Load Torque (N.m) | MR: 5.5, MP: 3.7, MY: 3.1 | ||
| Control Method | Controller | Controller Built-in | |
| Control Method | Bus | Modbus RTU | |
| Interface | I/O | ||
| I/O Interface | Input 3 Points(NPN), Output 3 Points(NPN) | ||
| Operating Environment | Rated Voltage (V) | DC24±10% | |
| Rated Current (A) | 4 | ||
| Usage Environment | 0~40°C, < 85%RH (Without condensation) | ||
| Protection Class IP | IP55 | ||
