RM-MFGB——Multi-Function Long Stroke Gripper
Large Stroke
Large Gripping Force
IP55 Level
Waterproof Connector
Stable & Reliable
Speedy Gripping
Large Stroke
Large Gripping Force
IP55 Level
Waterproof Connector
Stable & Reliable
Speedy Gripping

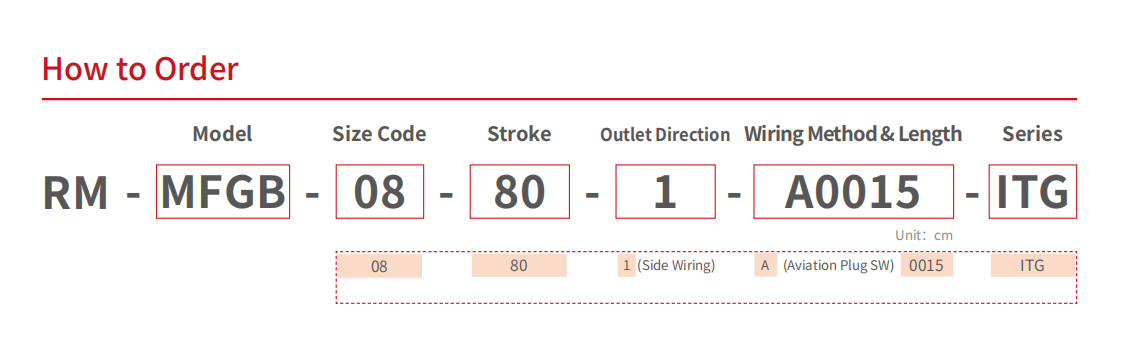

| Model | RM-MFGB-08-80-1-ITG |
|---|---|
| Size Code | 08 |
| Weight | 1 kg |
| Dimensions | 95 * 62 * 106 mm |
| Stroke | 80 mm |
| Max. Gripping Force1 | 150 N |
| Max. Load Mass | 3 kg |
| Repeatability | ±0.03 mm |
| Max. Open/Close Time | 0.7s / 0.7s |

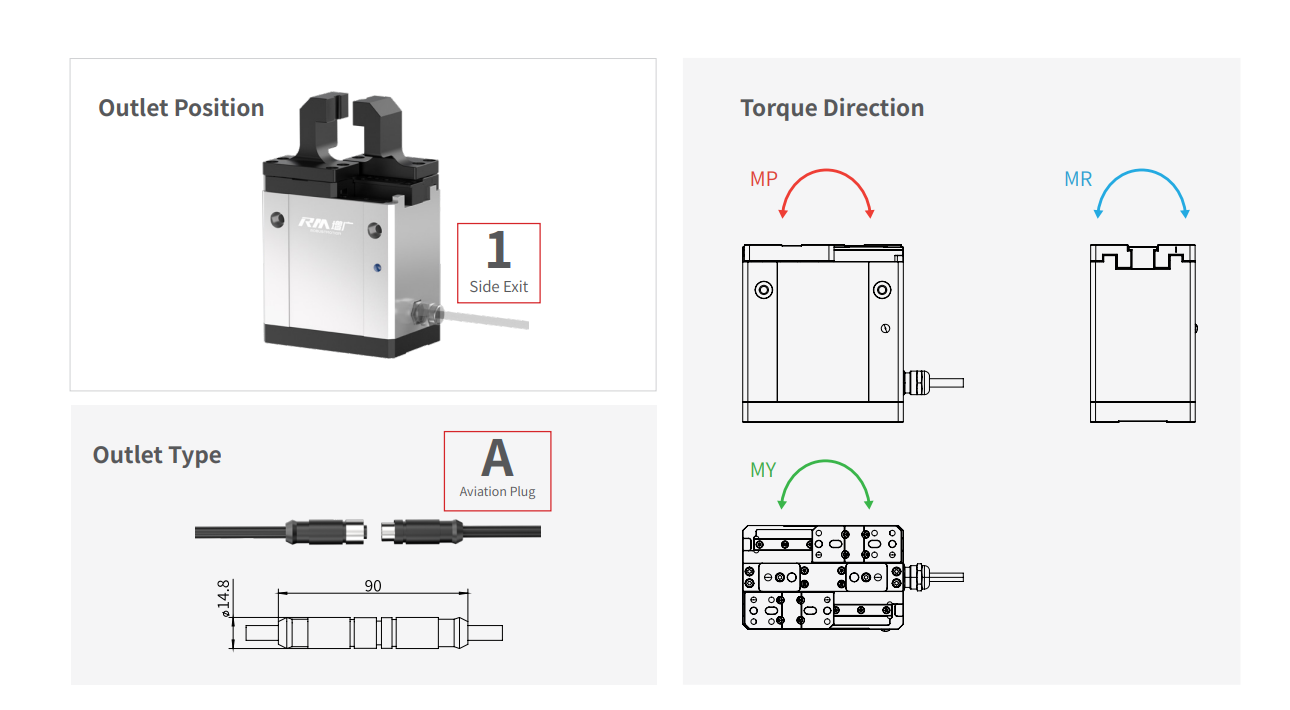

| Allowable Moment MP | 3.7 N.m |
| Allowable Moment MR | 5.5 N.m |
| Allowable Moment MY | 3.1 N.m |
| Compatible Controllers | Built-in Controller |
| Communication Protocols | Modbus RTU; I/O |
| I/O Interface | 3 IN / 3 OUT (NPN) |
| Operating Voltage | DC 24V ±10% |
| Rated Current | 4A |
| Operating Environment | 0~40℃, < 85%RH |
| Protection Class | IP55 |
RM-MFGB provides 80mm long stroke, up to 150N gripping force, IP55 protection, and a waterproof connector for reliable industrial operation.
The built-in controller supports Modbus RTU bus control and I/O control.
The repeat positioning accuracy is ±0.03mm.
RM-MFGB is rated IP55 and supports operation in 0~40C and less than 85%RH (non-condensing).
The maximum recommended load mass is 3kg.
Yes. For optional versions such as different motor directions, outlet directions, outlet methods, or brake versions, contact your local sales representative.
