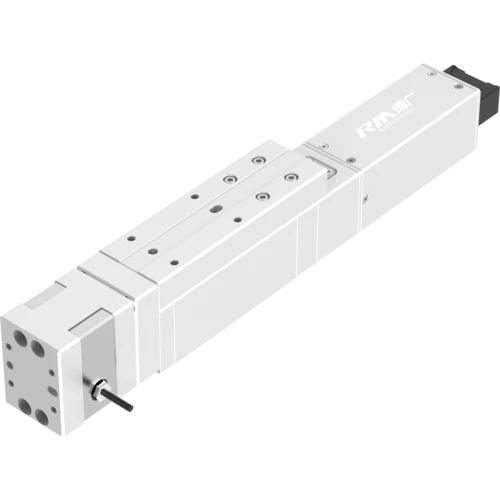

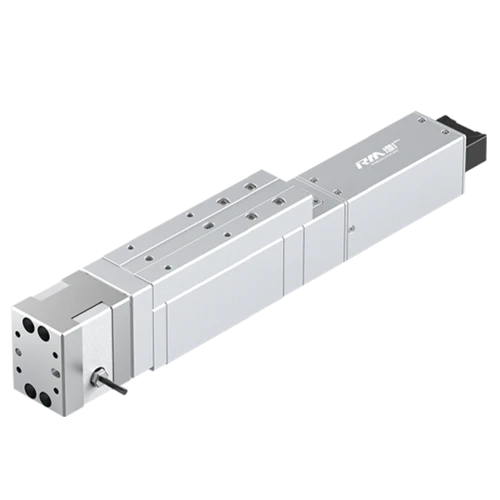

RM-PLA-HF——SoftForce® Straight Platform Linear Actuator
Can be Installed Side-by-side
High positioning repeatability
Stable under High-speed
Can be Installed Side-by-side
High positioning repeatability
Stable under High-speed

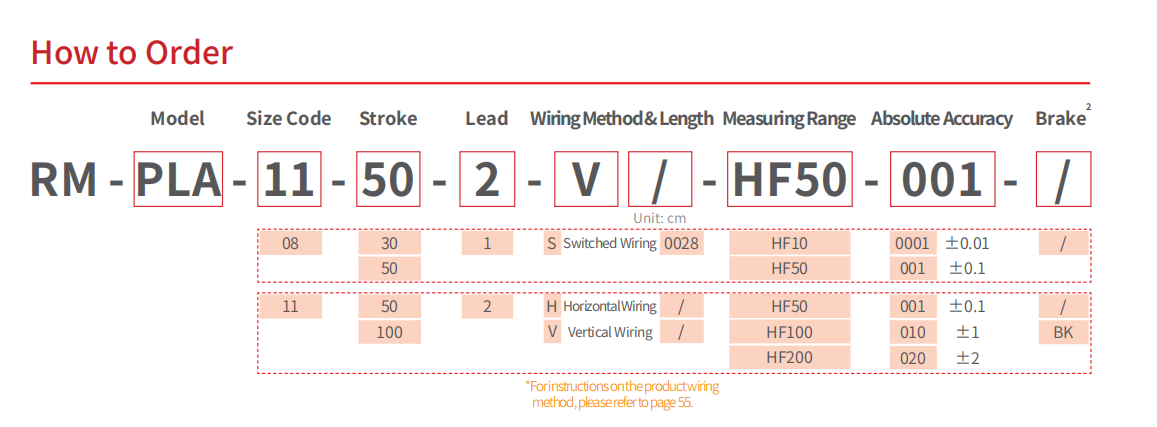

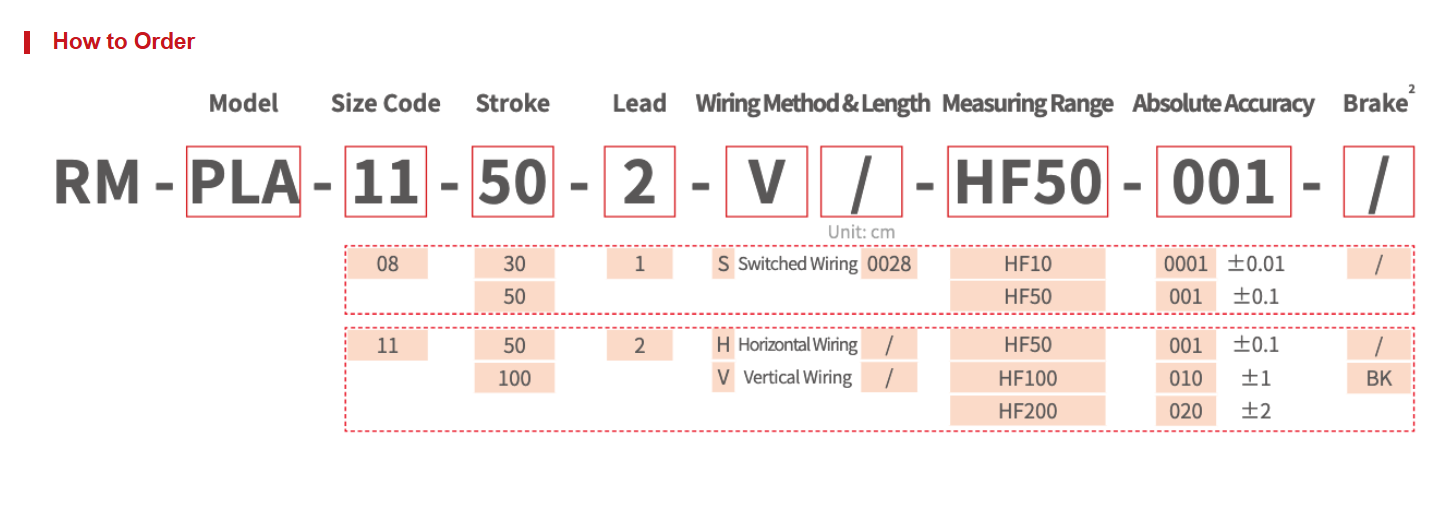

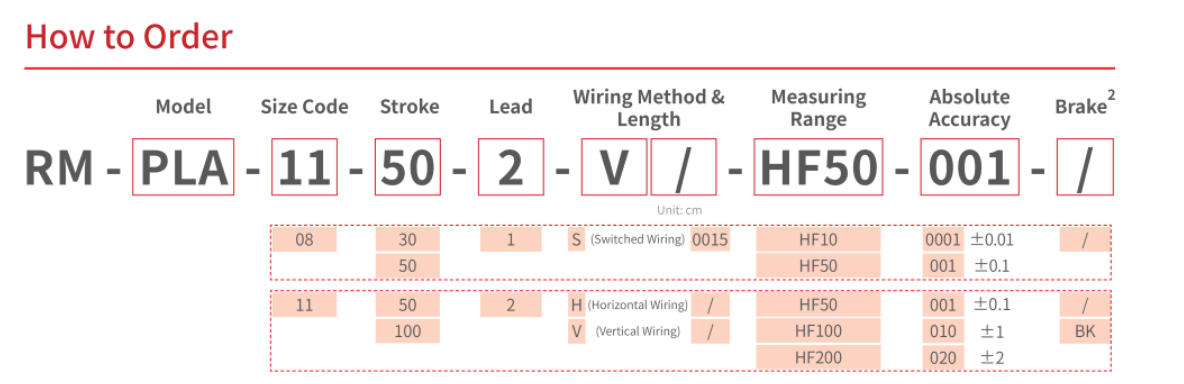

| Item | Parameters | ||||||
|---|---|---|---|---|---|---|---|
| Model Description | Model | RM-PLA-08-30-1-HF | RM-PLA-08-50-1-HF | RM-PLA-11-50-2-HF | RM-PLA-11-100-2-HF | ||
| Size Code | 08 | 08 | 11 | 11 | |||
| Weight (kg) | 0.5 | 0.7 | 1.0 | 1.2 | |||
| Dimensions (mm) | 193*25*44 | 213*25*44 | 300*37.5*50.5 | 350*37.5*50.5 | |||
| Performance | Stroke (mm) | 30 | 50 | 50 | 100 | ||
| Lead (mm) | 1 | 1 | 2 | 2 | |||
| Max. speed (mm/s) | 50 | 50 | 100 | 100 | |||
| Max. load Mass (kg) | Horizontal | 0.5 | 0.5 | 0.5 | 0.5 | ||
| Vertical | 1 | 1 | 1.5 | 1.5 | |||
| Repeat Positioning Accuracy (mm) | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |||
| Control | Compatible Controllers | RM-CEPF-20, RM-C-20-F, RM-CEMF-55 | |||||
| Supporting Bus Protocols | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen | ||||||
| Supporting Control Modes | I/O, Pulse Control (Excluding RM-CEMF-55 Controller) | ||||||
| Operating Environment | Rated Voltage (V) | DC24±10% | DC24±10% | DC24±10% | DC24±10% | ||
| Rated Current (A) | 2 | 2 | 2 | 2 | |||
| Usage Environment | 0~40°C, <85%RH (Non-condensing) | ||||||
| Protection Class IP | IP40 | IP40 | IP40 | IP40 | |||
| Size Code | Stroke (mm) | Closed-loop Output Range (N) | |||
|---|---|---|---|---|---|
| HF10-0001 | HF50-001 | HF100-010 | HF200-020 | ||
| 08 | 30, 50 | 0.02 ~ 9.98 | 0.2 ~ 38.5 | / | / |
| 11 | 50, 100 | / | 0.2 ~ 49.8 | 1.1 ~ 98.9 | 2.1 ~ 197.9 |

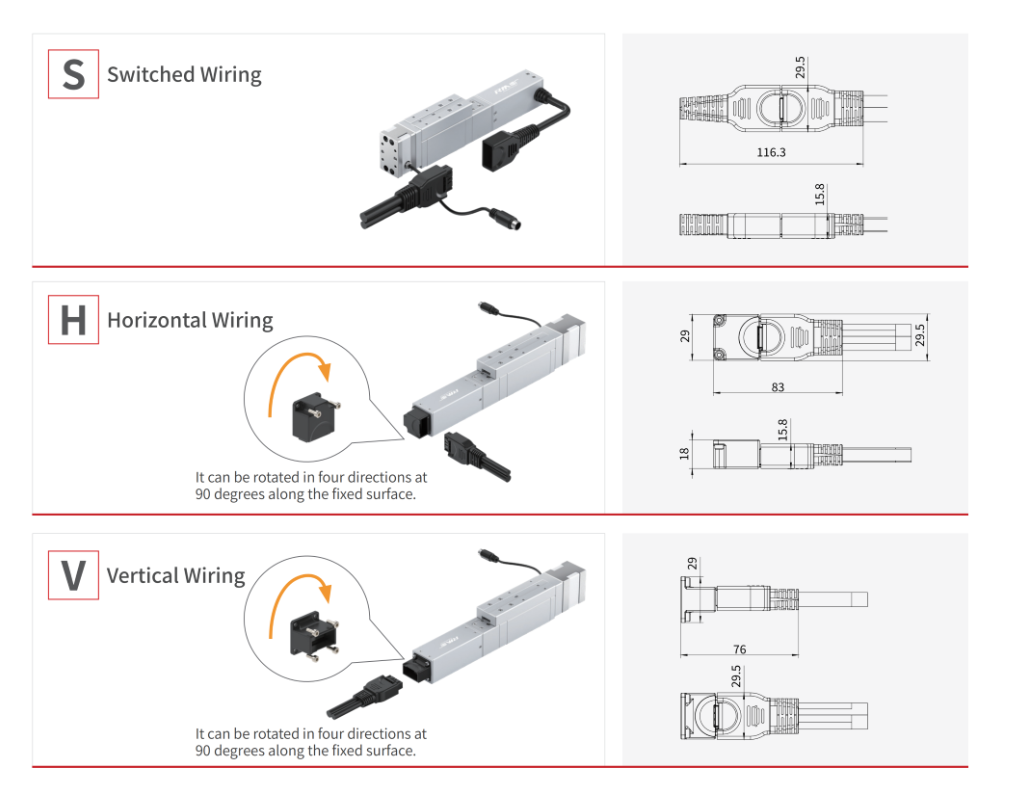

1. The drawings provided in this Catalogue are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawing.
2. If you require a product with a brake, please contact your sales representative for a drawing.
