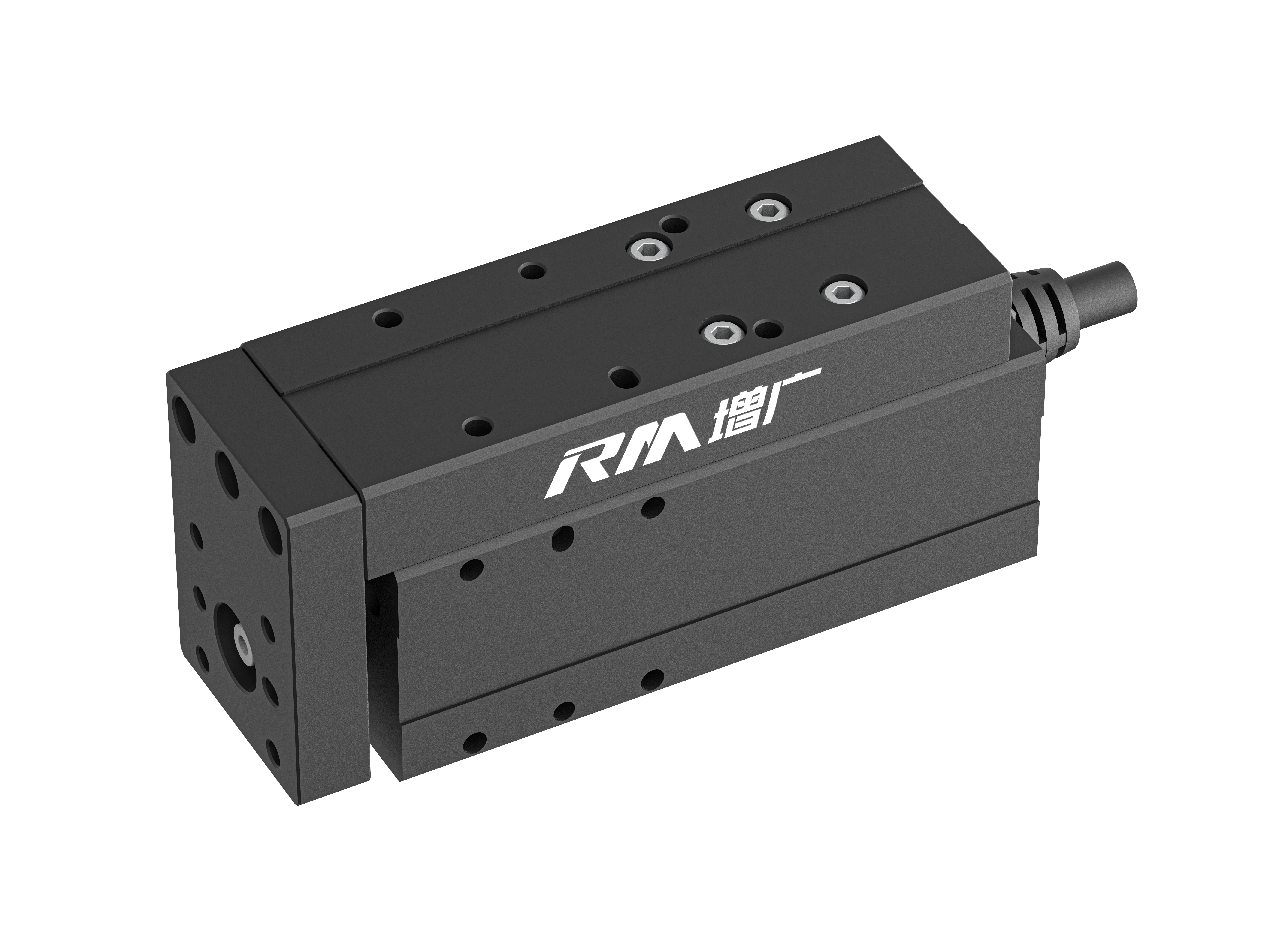

Miniature Size Compact design optimized for space-efficient installations while maintaining full functionality and performance.
High Positioning Repeatability Achieves exceptional positioning accuracy with minimal deviation, ensuring consistent and precise operations cycle after cycle.
Stable under High-speed Maintains reliable performance and stability even during high-speed operations, with minimal vibration and superior motion control.
| Model |
NPLA-10-30-1
|

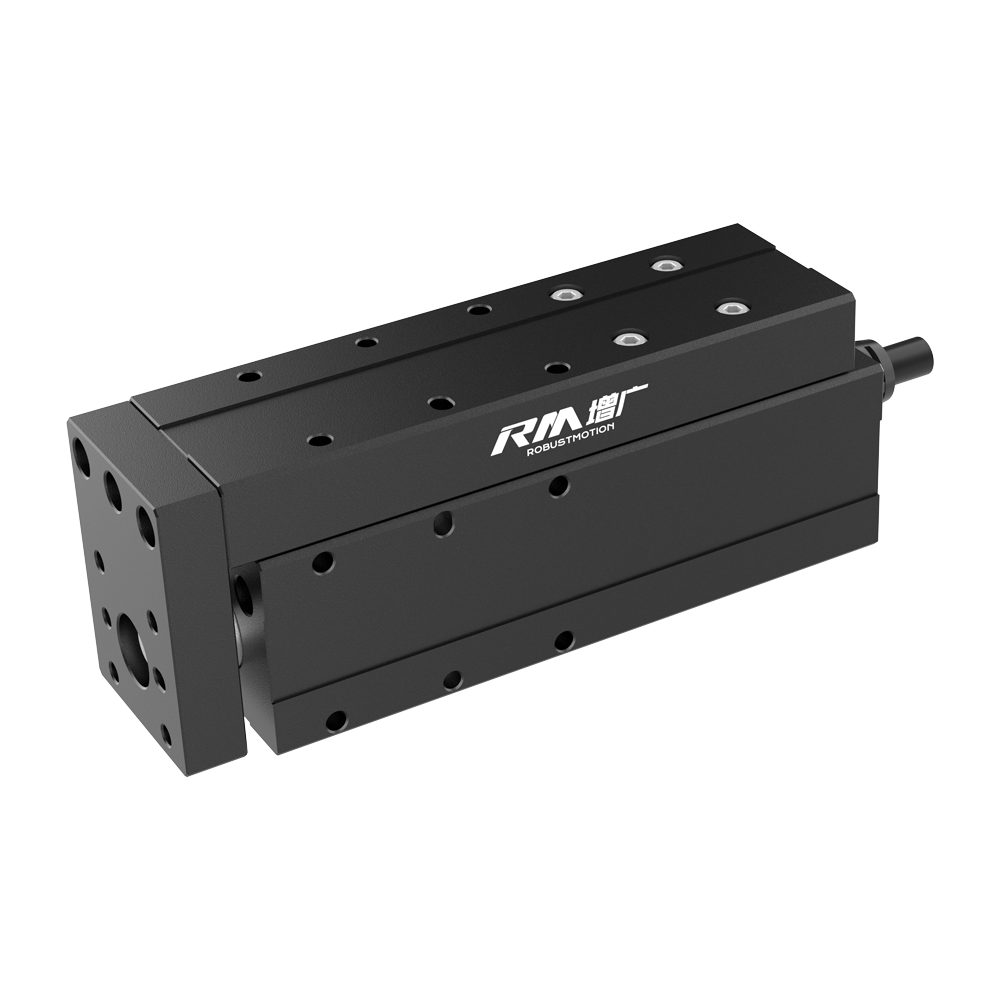

NPLA-10-30-2
|

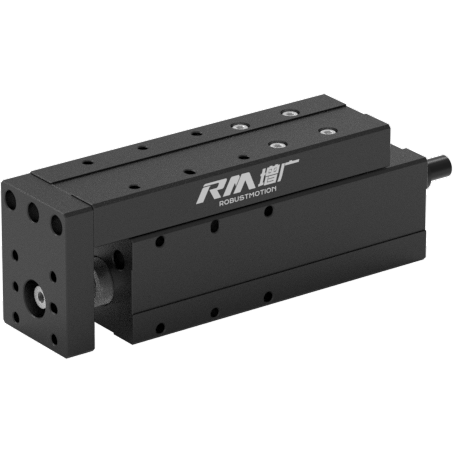

NPLA-10-50-1
|
NPLA-10-50-2
|

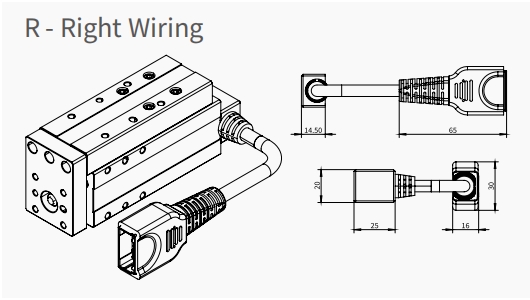

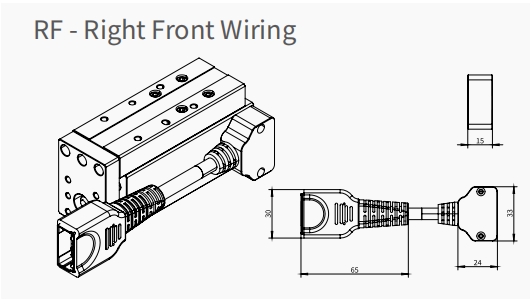

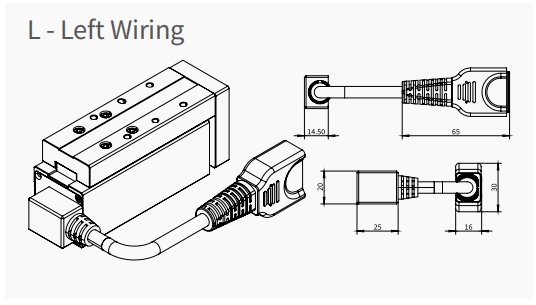

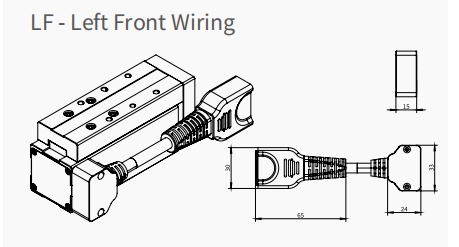

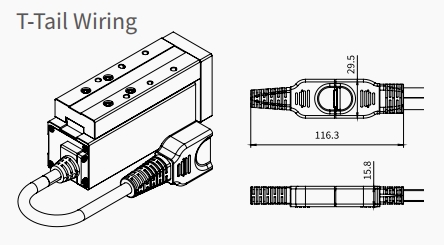

|---|---|---|---|---|
| Size Code | 10 | 10 | 10 | 10 |
| Stroke (mm) | 30 | 30 | 50 | 50 |
| Size | #mm x #mm x #mm | #mm x #mm x #mm | #mm x #mm x #mm | #mm x #mm x #mm |
| Lead (mm) | 1 | 2 | 1 | 2 |
| Max.speed (mm/s) | 50 | 100 | 50 | 100 |
| Max. pushing Force¹ (N) | 210 | 110 | 210 | 110 |
| Recommentded Workpiece Weight | 0.1kg | 0.1kg | 0.1kg | 0.1kg |
| Max. Horizontal load Mass (kg) | 6 | 3 | 6 | 3 |
| Max. Vertical load Mass (kg) | 3 | 2 | 3 | 2 |
| Repeat Positioning Accuracy (mm) | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Permissible Load Torque (N.m) | MP: 9.75, MR: 11.31, MY: 3.75 | MP: 9.75, MR: 11.31, MY: 3.75 | MP: 9.75, MR: 11.31, MY: 3.75 | MP: 9.75, MR: 11.31, MY: 3.75 |
| Compatible Controllers | RM-CEU, RM-CEM | RM-CEU, RM-CEM | RM-CEU, RM-CEM | RM-CEU, RM-CEM |
| Supporting Bus Protocols | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen |
| Rated Voltage (V) | DC24±10% | DC24±10% | DC24±10% | DC24±10% |
| Rated Current (A) | 1.25 | 1.25 | 1.25 | 1.25 |
| Cable Length (m) | 3/5 | 3/5 | 3/5 | 3/5 |
| Weight (kg) | 0.5 | 0.5 | 0.6 | 0.6 |
| Usage Environment | 0~40°C, < 85%RH (Non-condensing) | 0~40°C, < 85%RH (Non-condensing) | 0~40°C, < 85%RH (Non-condensing) | 0~40°C, < 85%RH (Non-condensing) |
| Protection Class IP | IP40 | IP40 | IP40 | IP40 |
