Product Specifications

Product Model and Specifications - Split Type Model (External Controller)

Model	RM-GB-11-20-2	RM-GB-11-40-2	RM-GB-17-30-2	RM-GB-17-60-2	RM-GB-17-80-2	RM-GB-17-120-2
Size Code	11	11	17	17	17	17
Stroke (mm)	20	40	30	60	80	120
Type Code	2	2	2	2	2	2
Max.gripping Force (N)	65	110	500	250	700	700
Max.speed (mm/s)	80	80	100	100	100	100
Repeat Positioning Accuracy (mm)	±0.05	±0.05	±0.02	±0.05	±0.02	±0.02
Max.opening/closing Time (s)	0.33/0.33	0.58/0.58	0.4/0.4	0.7/0.7	0.9/0.9	1.3/1.3
Permissible Load Torque (N.m)	MR:8.0,MP:5.9, MY:5.9	MR:8.0,MP:5.9, MY:5.9	MR:58.5,MP:15.0, MY:25.5	MR:58.5,MP:15.0, MY:25.5	MR:60,MP:30, MY:40	MR:60,MP:30, MY:40
Power Failure Auto-Lock	Mechanical Self-Locking	Mechanical Self-Locking	Option Brake	Mechanical Self-Locking	Option Brake	Option Brake
Compatible Controllers	RM-C-20, RM-CEP-20, RM-CEM	RM-C-20, RM-CEP-20, RM-CEM	RM-C-40, RM-CEP-40, RM-CEM	RM-C-40, RM-CEP-40, RM-CEM	RM-C-40, RM-CEP-40, RM-CEM	RM-C-40, RM-CEP-40, RM-CEM
Supporting Bus Protocols	ModbusRTU, EtherCAT, ModbusTCP, PROFINET, EtherNet/IP, CC-LINK, CANopen	ModbusRTU, EtherCAT, ModbusTCP, PROFINET, EtherNet/IP, CC-LINK, CANopen	ModbusRTU, EtherCAT, ModbusTCP, PROFINET, EtherNet/IP, CC-LINK, CANopen	ModbusRTU, EtherCAT, ModbusTCP, PROFINET, EtherNet/IP, CC-LINK, CANopen	ModbusRTU, EtherCAT, ModbusTCP, PROFINET, EtherNet/IP, CC-LINK, CANopen	ModbusRTU, EtherCAT, ModbusTCP, PROFINET, EtherNet/IP, CC-LINK, CANopen
Rated Voltage (V)	DC24±10%	DC24±10%	DC24±10%	DC24±10%	DC24±10%	DC24±10%
Rated Current (A)	2	2	4	4	4	4
Weight (kg)	0.8	1.1	2.1	2.3	3.5	4.0
Usage Environment	0~40°C, < 85%RH (Non-condensing)	0~40°C, < 85%RH (Non-condensing)	0~40°C, < 85%RH (Non-condensing)	0~40°C, < 85%RH (Non-condensing)	0~40°C, < 85%RH (Non-condensing)	0~40°C, < 85%RH (Non-condensing)
Protection Class IP	IP40	IP40	IP40	IP40	IP40	IP40

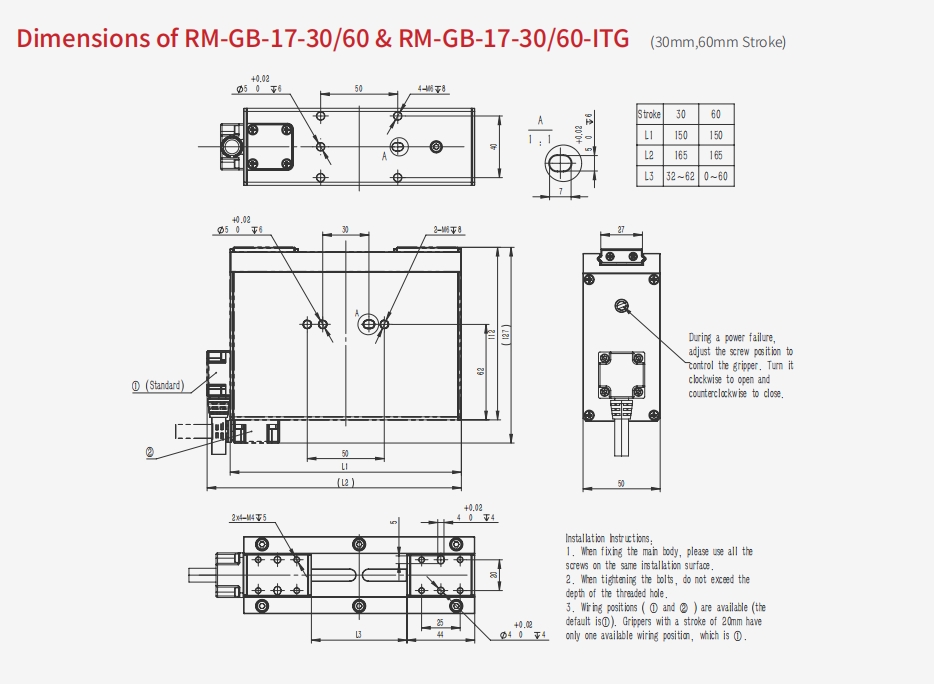

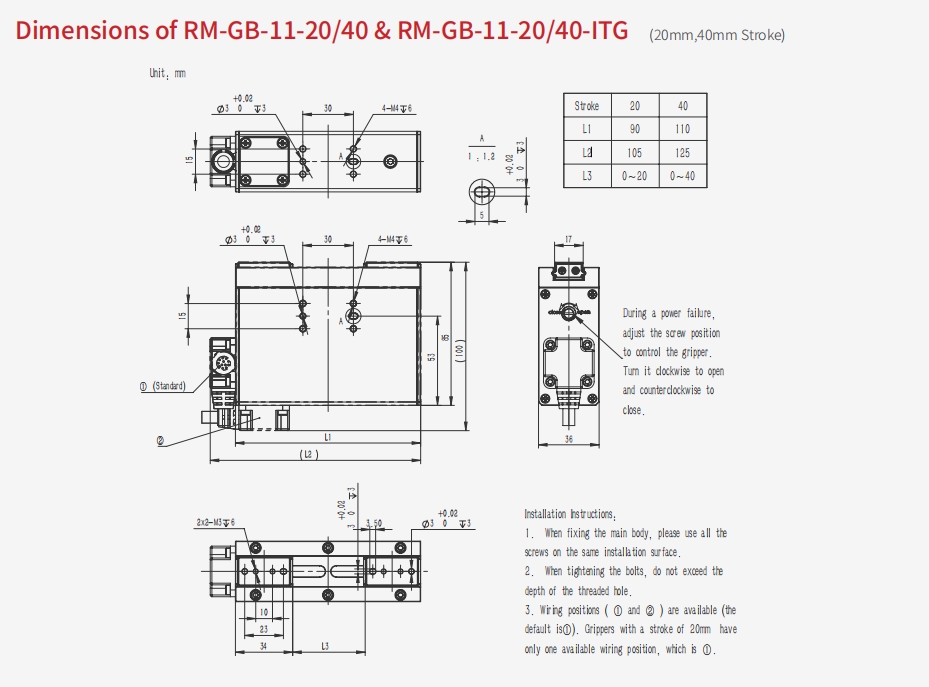

Technical Drawing

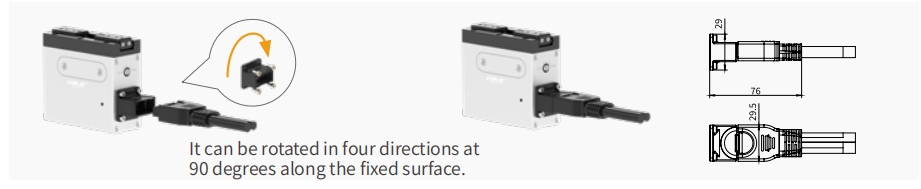

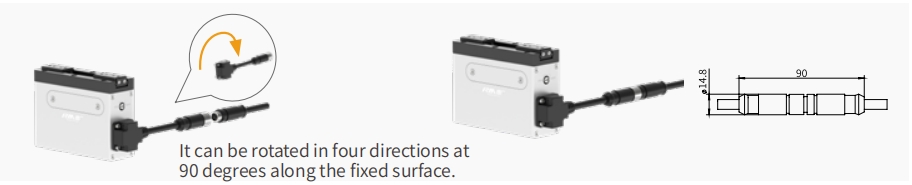

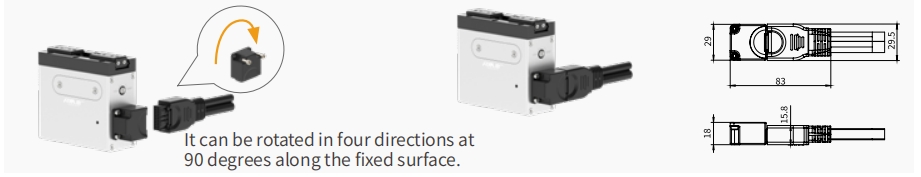

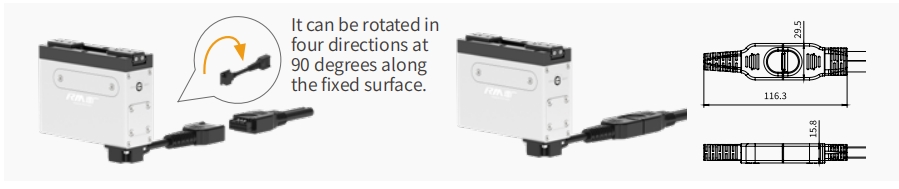

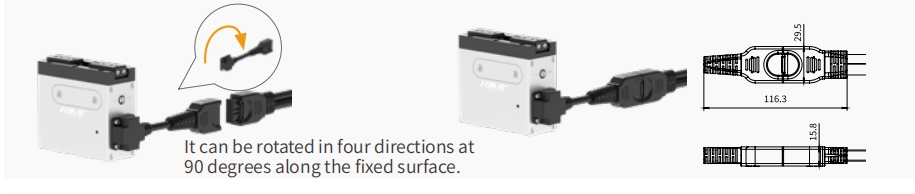

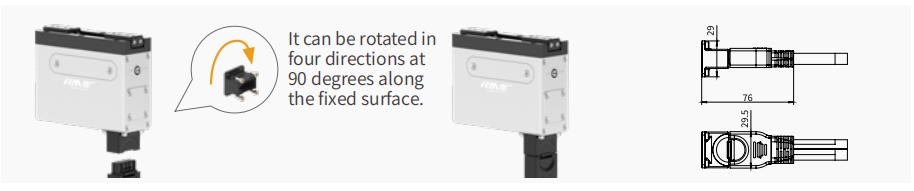

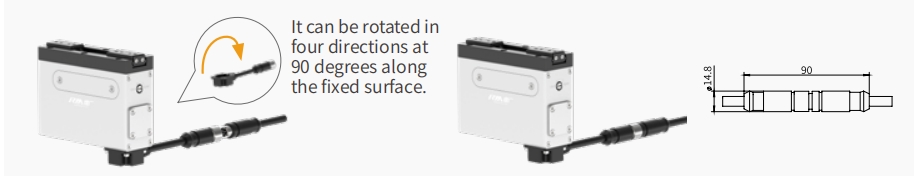

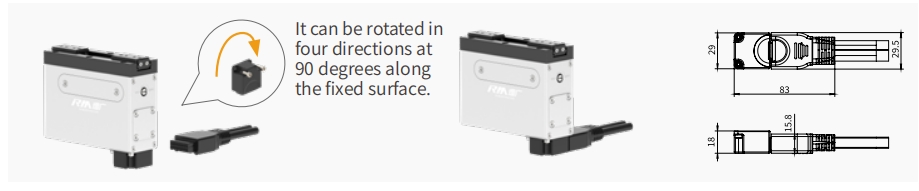

Product Advantages

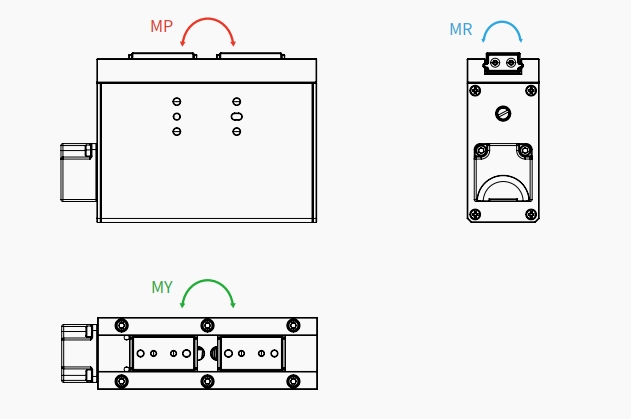

Torque Direction

Notes :
1. Please refer to the gripping force within ±15% of the provided value, and the actual clamping performance may vary depending on factors such as the material, surface condition, and clamping point position of the workpiece. The data is based on test results obtained in a 25°C laboratory.
2. The drawings provided in this Catalogue are for the default standard models. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawings for the optional models.
