PVCS——Direct-drive Micro Platform Type Actuator

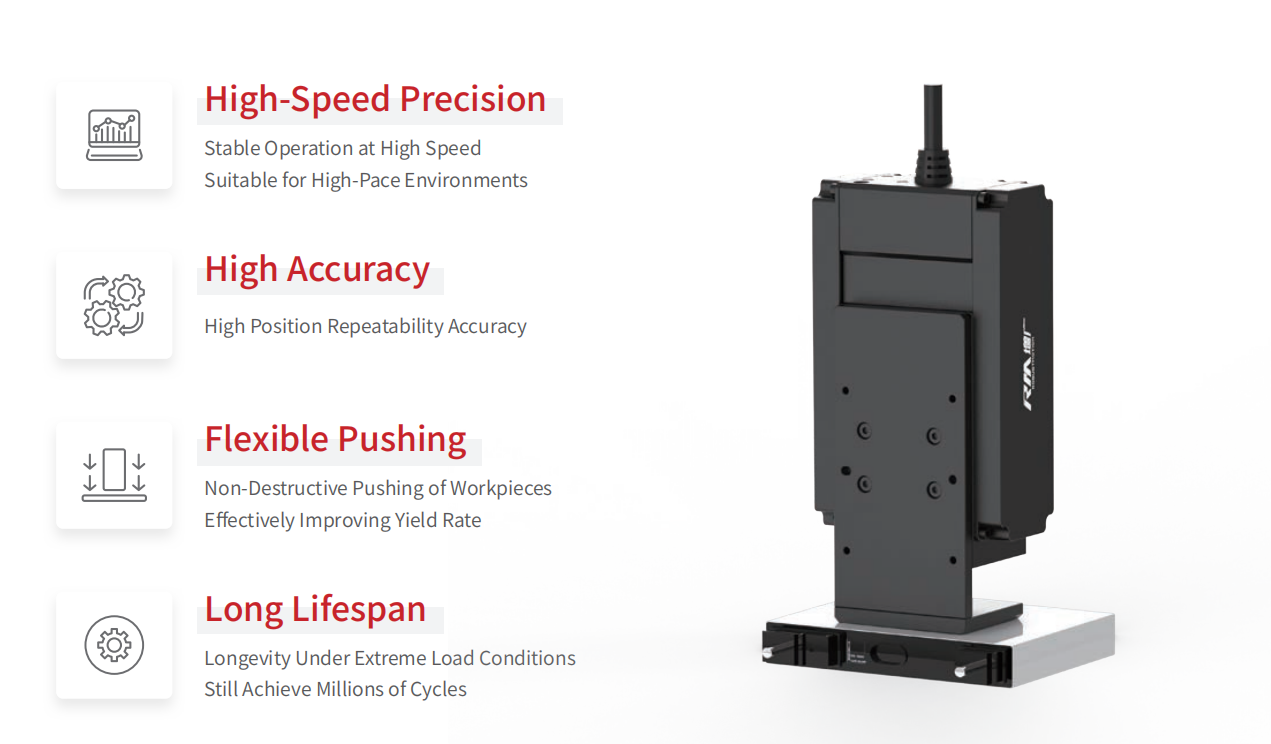

High-Speed and Precise

Soft Pushing

A long Lifespan

PVCS Linear Actuator
PVCS Linear Actuator
Parameter Drawing FAQ Application

Specifications

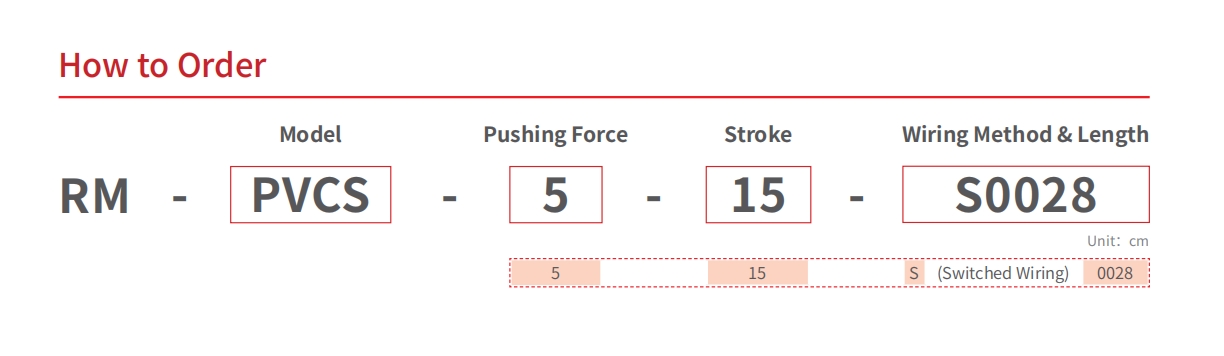

Model RM-PVCS-5-15
Stroke15 mm
Weight1.1 kg
Dimensions147 * 81 * 45 mm
Continuous Force15 N
Peak Force118 N
Force Constant2.85 N/A
Repeatability±6 μm
Linear Travel Resolution0.5 μm
Max. frequency18 Hz
Z-axis Anti-drop ProtectionConstant Force Spring Reset
Compatible ControllersRM-CEU; RM-CEM
Bus Protocols RM-CEU supports: EtherCAT; Modbus RTU; I/O RM-CEM supports: Modbus TCP; PROFINET; CC-Link
I/O InterfaceSee controller specs
Rated Current2.1A
Operating Voltage24V
Cable Length3m
Operating Environment0~40℃, < 85%RH
Protection ClassIP40
PVCS Linear Actuator

Dimension Drawings

RM-PVCS-5-15-S0028
PDF

3D Model Files

RM-PVCS-5-15-S0028
STEP

Notes:

  1. The drawings provided in this Catalogue are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawing.
  2. If you require a product with a brake, please contact your sales representative for a drawing.
