RM-PVCS-F——SoftForce Direct-drive Micro Platform-type Actuator
High-Speed and Precise
Soft Pushing
A long Lifespan
High-Speed and Precise
Soft Pushing
A long Lifespan
| Item | Parameters | ||
|---|---|---|---|
| Model | Model | RM-PVCS-5-15-F | |
| Stroke (mm) | 15 | ||
| Weight (kg) | 1.1 | ||
| Dimensions (mm) | 173.5*81*45 | ||
| Performance | Continuous Force1 (N) | 5 | |
| Force Constant (N/A) | 2.85 | ||
| Repeat Positioning Accuracy (µm) | ±6 | ||
| Linear Travel Resolution (µm) | 0.5 | ||
| Max. frequency (Hz) | 6 | ||
| Control | Compatible Controllers | RM-CEPF-20, RM-CEUF-55, RM-CEMF-55 | |
| Supporting Bus Protocols | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen | ||
| Supporting Control Methods | I/O, Pulse Control (Excluding RM-CEMF-55 Controller) | ||
| Operating Environment | Rated Current (A) | 2.1 | |
| Rated Voltage (V) | 24 | ||
| Z-axis Anti-drop Protection | Constant Force Spring Reset | ||
| Cable Length (m) | 3 | ||
| Usage Environment | 0~40°C, <85%RH (Non-condensing) | ||
| Protection Class IP | IP40 | ||

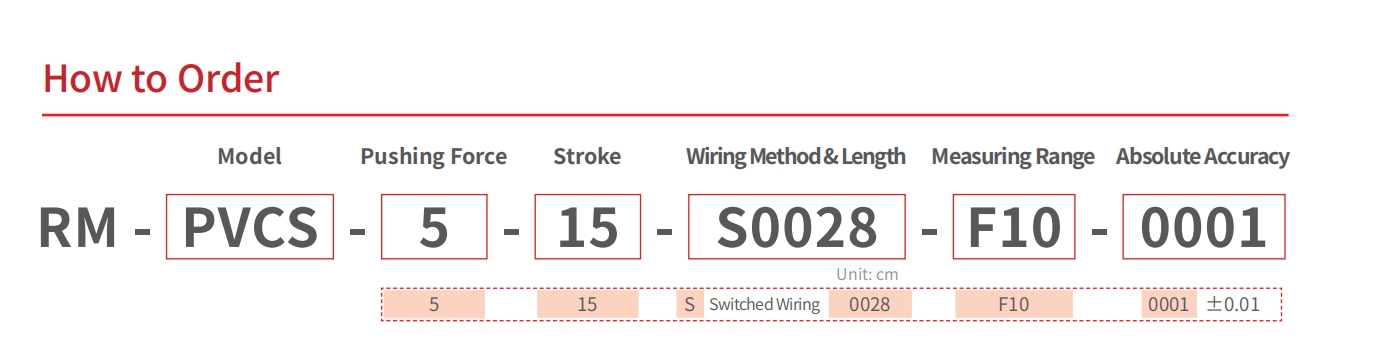

| Continuous Force (N) | Stroke (mm) | Closed-loop Output Range (N) |
|---|---|---|
| F10-0001 | ||
| 5 | 15 | 0.04 ~ 4.96 |
