| Item | Parameters | ||
|---|---|---|---|

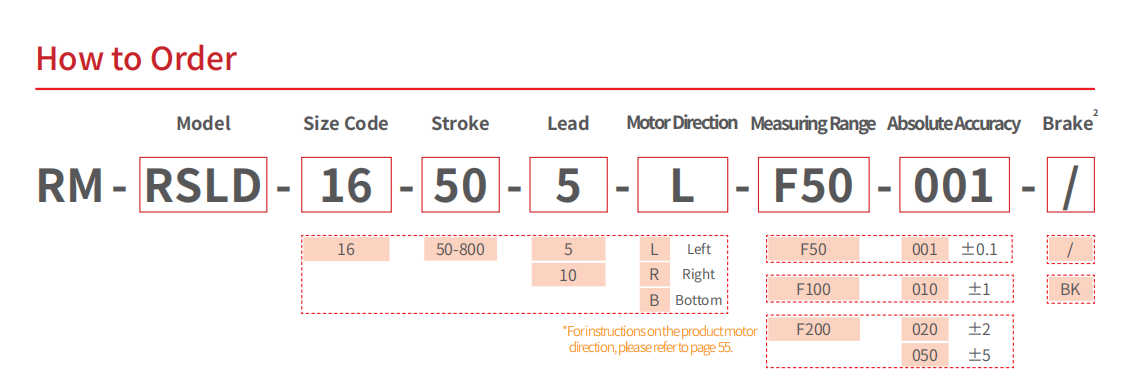

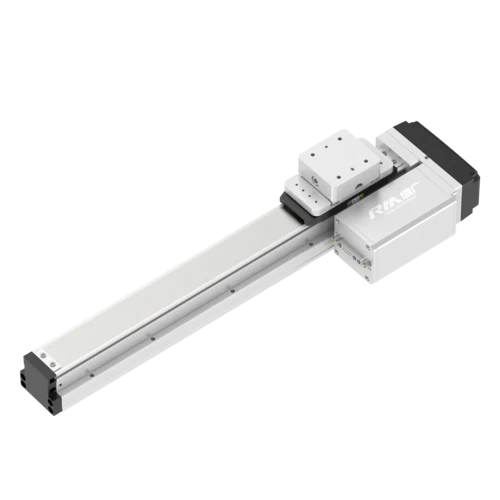

| Model Description | Model | RM-RSLD-16-X-5-F | RM-RSLD-16-X-10-F |
| Size Code | 16 | 16 | |
| X - Stroke (mm) | 50-800 (Every 50 Intervals) | 50-800 (Every 50 Intervals) | |
| Lead (mm) | 5 | 10 | |
| Max.speed (mm/s) | 200 | 400 | |
| Repeat Positioning Accuracy (mm) | ±0.02 | ±0.02 | |
| Control | Compatible Controllers | RM-CEUF-55, RM-CEMF-55 | |
| Supporting Bus Protocols | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen | ||
| Supporting Control Modes | I/O, Pulse Control (Excluding RM-CEMF-55 Controller) | ||
| Operating Environment | Rated Voltage (V) | DC24±10% | DC24±10% |
| Rated Current (A) | 4 | 4 | |
| Usage Environment | 0~40°C, <85%RH (Non-condensing) | 0~40°C, <85%RH (Non-condensing) | |
| Protection Class IP | IP40 | IP40 | |
| Measuring Range | Measuring Range | Force Control Accuracy level (N) | Closed-loop Output Range (N) | Load Capacity (kg) | |
|---|---|---|---|---|---|
| Horizontal | Vertical | ||||
| F50 | 001 | ±0.1 | 0.2~49.8 | 1 | 2 |
| F100 | 010 | ±1 | 1.1~98.9 | 2 | 2 |
| F200 | 020 | ±2 | 2.1~197.9 | 4 | 4 |
| F200 | 050 | ±5 | 5.1~194.9 | 4 | 4 |
1. The drawings provided in this Catalogue are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawing.
2. If you require a product with a brake, please contact your sales representative for a drawing.
