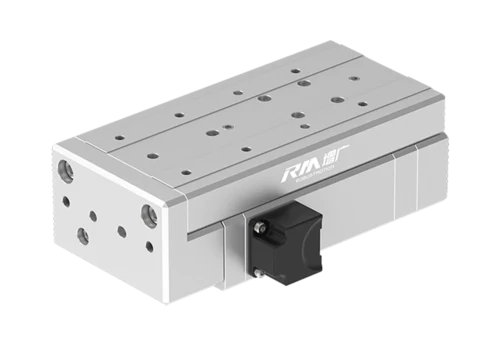

WRPLA-F——SoftForce Wide Platform Type Linear Actuator
High Rigidity
High Load Capacity
Fast Response Speed
Adaptive Pushing
High Rigidity
High Load Capacity
Fast Response Speed
Adaptive Pushing
| Item | Parameters | ||
|---|---|---|---|

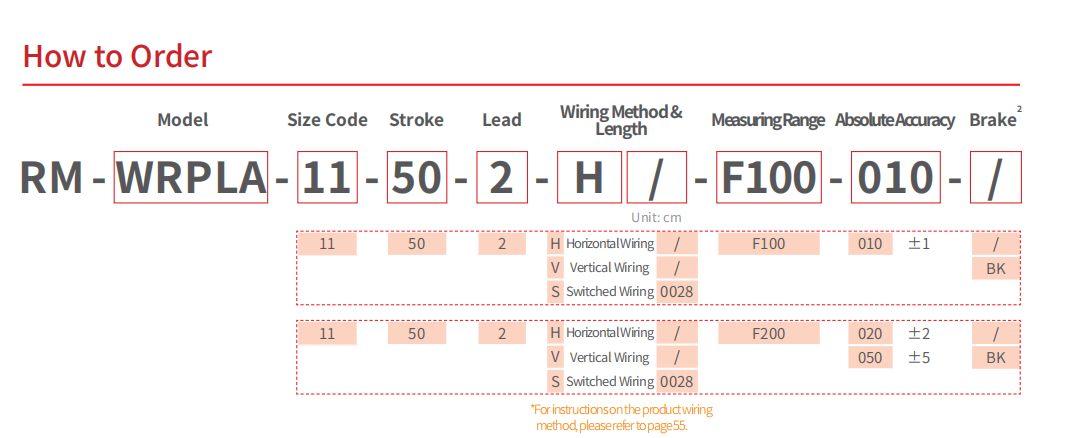

| Model Description | Model | RM-WRPLA-11-50-2-F | |
| Size Code | 11 | ||
| Weight (kg) | 1.8 | ||
| Dimensions (mm) | 171.5*80*56 | ||
| Performance | Stroke (mm) | 50 | |
| Lead (mm) | 2 | ||
| Max.speed (mm/s) | 100 | ||
| Max. load Mass (kg) | Horizontal | 6 | |
| Vertical | 0.5 | ||
| Repeat Positioning Accuracy (mm) | ±0.02 | ||
| Control | Compatible Controllers | RM-CEPF-20, RM-C-20-F, RM-CEMF-55 | |
| Supporting Bus Protocols | Modbus RTU, EtherCAT, Modbus TCP, PROFINET, EtherNet/IP, CC-LINK, CANopen | ||
| Supporting Control Modes | I/O, Pulse Control (Excluding RM-CEMF-55 Controller) | ||
| Operating Environment | Rated Voltage (V) | DC24±10% | |
| Rated Current (A) | 2 | ||
| Usage Environment | 0~40°C, <85%RH (Non-condensing) | ||
| Protection Class IP | IP40 | ||
| Size Code | Stroke (mm) | Closed-loop Output Range (N) | ||
|---|---|---|---|---|
| F100-010 | F200-020 | F200-050 | ||
| 11 | 50 | 1.1~98.9 | 2.1~197.9 | 5.1~194.9 |
